제품소개

Products

수중청음기(고래/돌고래/수중생물 녹음기)

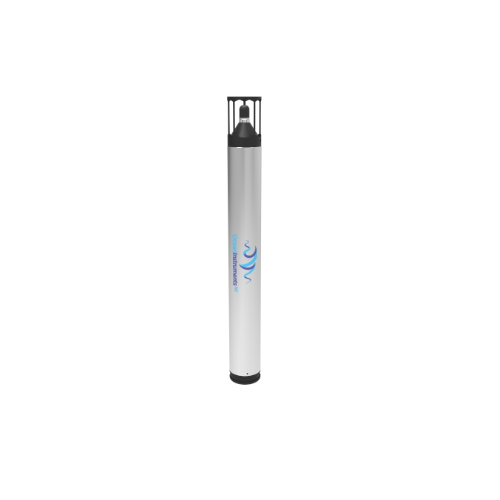

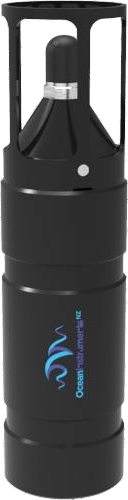

  • SoundTrap ST600 HF (수중 청음기)

    Point. 01

    해양수중의포유류(고래)의음향을측정및기록,분석하기위한시스템

    Point. 02

    수중노이즈의특성,해양포유류(Pilot whales, Beaked Whales, Toothed Whales) 연구에사용

    SoundTrap ST600 HF (수중 청음기) 제품사양

    사양명 제품사양
    Bandwidth STD 20 Hz - 60 kHz + 3dB
    HF 20 Hz - 150 kHz * 3dB
    Self-noise Better than sea-state 0 (100 Hz - 2 kHz)
    STD Less than 36 dB re 1 µPa above 2 kHz
    HF Less than 37 dB re 1 µPa above 2 kHz
    Gain Max level before clipping: 173 dB re 1 µPa
    Sample rates STD 192, 96, 64, 48, 32 & 16 kHz
    HF 384, 192, 128, 96, 64 & 32 kHz
    ADC 16-bit SAR
    Calibration Factory calibration certificate (single point 250Hz)
    Memory 4 Slots for up to 4 x 512GB removable SDXC cards for up to 2TB total
    (Stores up to 6TB wav data due to advanced loss-less compression)
    Batteries 12 x Panasonic NCR18650B Lithium lon 18650 cells.
    Provides up to 160 days continuous operation. Batteries not included.
    Housing Titanium. Maximum depth is 200m, or 500m with optional safety valve.
    Dimensions 530mm Long x 60mm Diameter
    Weight 2.6 kg in airwith 12 batteries loaded
    1.2 kg in water with 12 batteries loaded

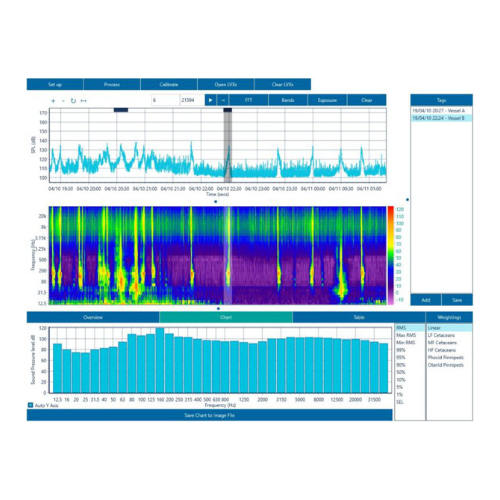

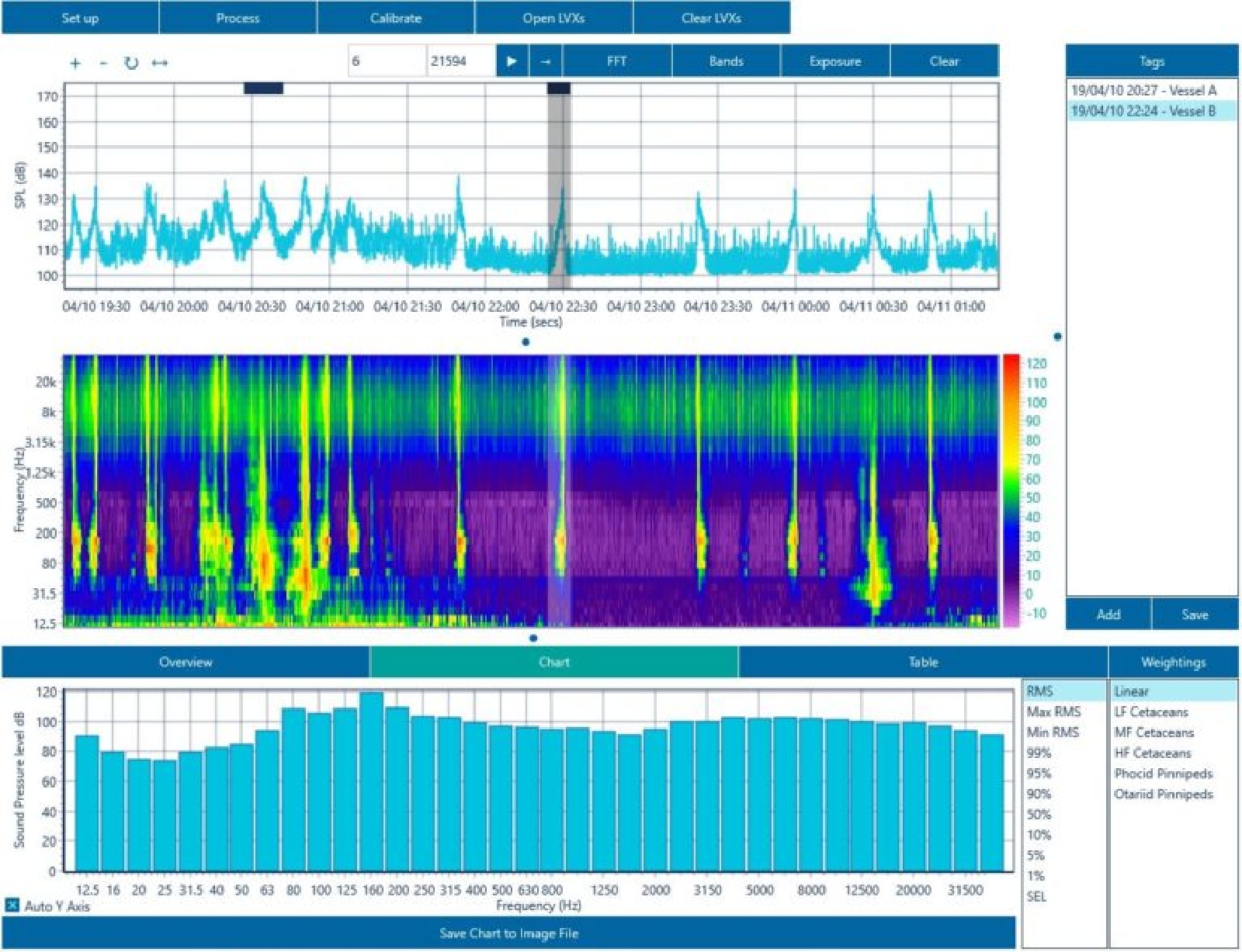

    분석 프로그램(dBWav) - 다양한 파일 분석
    - RMS, Min, Max, Peak, SEL, Percentiles 레벨분석
    - 1/3 octabve band Calculate
    - NOAA에 대한 해양 weoghting 적용

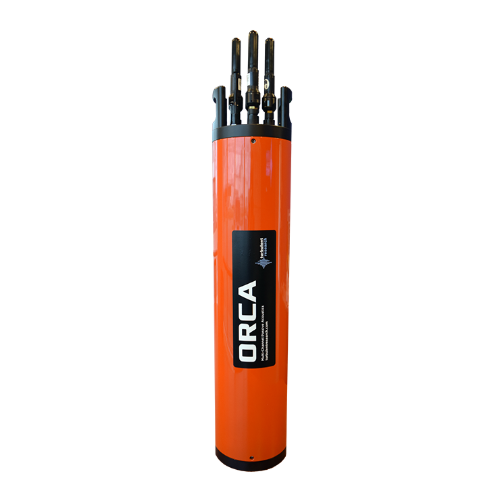

  • TR-ORCA(Multi channels 수중 청음기)

    Point. 01

    다채널 수중 청음기

    Point. 02

    Sample rate 24kHz - 384kHz

    Point. 03

    Long Deployments, 750 ~ 2,500M 깊이 측정

    TR-ORCA(Multi channels 수중 청음기) 제품사양

    사양명 제품사양
    Power Internal Power: Alkaline or Lithium Rechargeable Options
    ExternalPower:7-30VDC
    AveragePowerConsumption:300mW-3W(dependingonuse)
    Analogue Input Channel Number of Channels : 5 — Standard (more available on request)
    ADCNumberofBits:16-Standard
    DynamicRangePerChannel:95.5dB (full bandwidth, better at lower sampling rates)
    Sampling Rates Supported:24KHz,48KHz,96KHz, 192KHz,384KHz
    Memory Integrated 256 GB SD Card and 500 GB SSD Standard
    UptodTB available on request
    Configurable recording, schedule and duty cycling
    Communications Ethernet / HighSpeedUSBforDownload
    Included Processing 1/3 Octave Noise Analysis
    Average SPL, Max Peak to Peak, Percentiles
    Real Time Spectrograms
    Included Processing 1/3 Octave Noise Analysis
    Average SPL, Max Peak to Peak, Percentiles
    Real Time Spectrograms

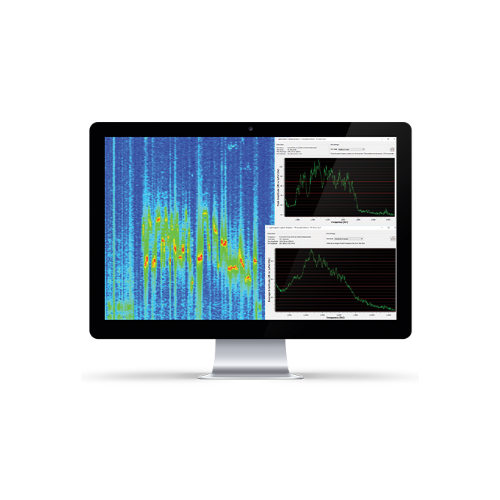

    TRAC 소프트웨어 실시간 스펙트럼 분석 프로그램

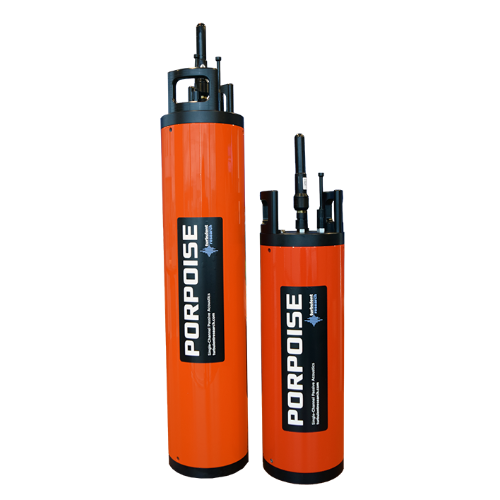

  • PORPOISE 84D(One channel 수중 청음기)

    Point. 01

    1채널 수중 청음기

    Point. 02

    Sample rate 24kHz - 384kHz

    Point. 03

    Long Deployments, 500 ~ 2,500M 깊이 측정

    PORPOISE 84D(One channel 수중 청음기) 제품사양

    사양명 제품사양
    Power External Power: 84 D-cell lithium battery pack
    Analogue Input Channel Number of Channels: 1
    ADC: 24 Bits Sigma Delta
    Dynamic Range: 110 dB (full bandwidth)
    Sampling Rates Supported: 2 kHz to 384 kHz
    Memory 1TB내장 메모리, Up to 8 TB, internal removable SD cardstorage
    Configurable recording, schedule and duty cycling
    Communications Real time Ethernet streaming — spectrograms, live audio, configuration and data download
    Included Processing 1/3 Octave Noise Analysis
    Average SPL, Max Peak to Peak, Percentiles
    Real Time Spectrograms
    Environmental 500 m standard depth rating, up to 2000 m
    Operating Temperature: =10° C to 50° C
    TRAC 소프트웨어 실시간 스펙트럼 분석 프로그램

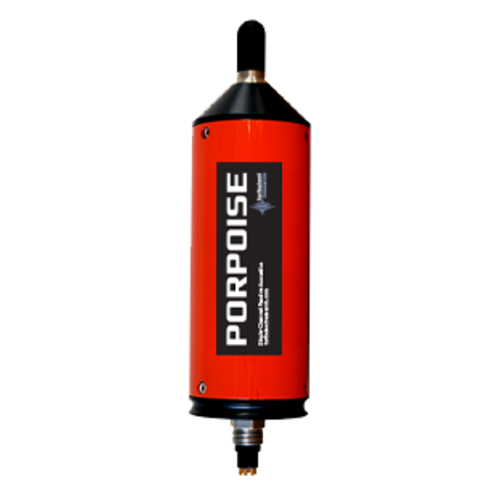

  • PORPOISE (소형 수중 청음기)

    Point. 01

    1채널 수중 청음기

    Point. 02

    Sample rate 2kHz - 384kHz

    Point. 03

    Long Deployments, 5,000M 깊이 측정

    PORPOISE (소형 수중 청음기) 제품사양

    사양명 제품사양
    Power External Power: 6.5V -26 V
    Internal Power: 12 x AAA cells (User Replaceable)
    48 Hour Continuous Recording at 384 ksps sampling rate
    on 12 internal AAA batteries
    Channel Analog Input Channel : 1 channel
    Analogue Bandwidth: 160 kHz
    ADC: 24 Bits Sigma Delta
    Dynamic Range: 110 dB (full bandwidth)
    Configurable Gain: 0 dB - 45 dB
    Sampling Rates Supported: 2 kHz to 384 kHz
    Selectable High Pass Filter
    Memory Internal 2T8, Up to 8 TB, internal removable SD card storage
    Configurable recording, schedule and duty cycling
    Demensions 7cm Diameter x 23.2cm Length, 1.34kg
    Communications Real Time Control & Configuration via Ethernet
    Real Time Streaming of Acoustic Data
    Environmental Depth Rating: 500 m Standard, 2000m/6000m
    Available(Porpoise - Ext 버전)
    Operating Temperature: 10°C c to +50°C
    External GPS Input for PPS Time Synchronisation
    Intergrations Long Range Real Time Streaming over Wi-Fi Via Surface Float
    TRAC 소프트웨어 실시간 스펙트럼 분석 프로그램
